High-Efficiency High-Current Flat Wire PFC Inductor
MagComponent presents the JHST25007 high-current flat wire PFC inductor, specifically designed for power factor correction (PFC), switching power supplies, and various high-frequency choke applications. This high-performance component features 8.5uH inductance with 100A current rating.
Technical Specifications
Product Model: JHST25007
Basic Information
- Core Specification: Sendust CS184060-HF
- Structure: Single Coil / Core Coil
- HS Code: 8504500000
Packaging & Compliance
- Packaging Dimensions: 10.00×5.00×5.00cm
- Gross Weight: 0.300kg
- Professional Manufacturing: 10+ Years Experience
Core Advantages & Features
Premium Materials
Utilizes MPP/Hi-Flux materials with extremely low core loss to ensure operational efficiency
Excellent Electrical Characteristics
Features large AE/Le values for stable electrical performance
Heat Dissipation & Efficiency
Large winding space effectively reduces copper loss; maintains high saturation at elevated temperatures
Compact Design
Small size, high efficiency, suitable for high-density layouts
High Current Capability
100A current rating with flat wire construction for superior performance
Quality Assurance
Professional manufacturing with 10+ years industry experience
Detailed Electrical Characteristics
Electrical Parameters
Inductance (S-F)
8.5uH ±20% @10KHz/0.1V
DC Resistance (DCR)
Maximum 1.5mΩ @25°C
Core Material
Sendust CS184060-HF
Operating Frequency
High Frequency Operation
Safety & Testing
Withstand Voltage Test (Hipot)
500VAC, 3 seconds, 5mA (coil to core)
Interlayer Short Circuit Test
Maximum 20% deviation at 1600V
Insulation Resistance (IR)
Minimum 100MΩ @DC500V
Storage Temperature
-20°C to +85°C

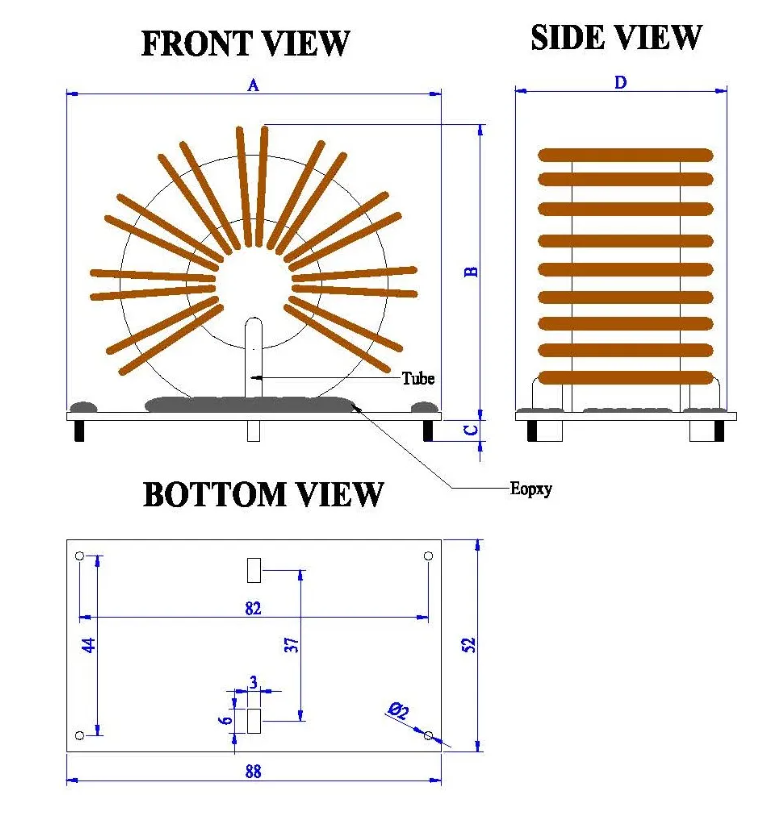

Product Dimensions
Packaging Dimensions: 10.00×5.00×5.00cm
Application Areas
Power Factor Correction
Specifically designed for power factor correction (PFC) circuits in various power applications
Switching Power Supplies
Ideal for switching power supply applications requiring high current handling
High-Frequency Choke
Suitable for various high-frequency choke applications in power electronics
About MagComponent
MagComponent is a professional manufacturer specializing in power inductors, transformers, and wireless chargers. With over 10 years of deep experience in the magnetic components industry, we are committed to providing you with exceptional quality and service.
Deep Customization
We provide product customization services according to your specific requirements
Professional Design
Senior engineers can design exclusive packaging structures for you
Quality Commitment
10+ years industry experience, all products come with 3-5 year warranty
Frequently Asked Questions
What is the main application of this high-current PFC inductor?
This high-current PFC inductor is specifically designed for power factor correction (PFC), switching power supplies, and various high-frequency choke applications requiring 100A current handling capability.
What is the inductance tolerance and measurement conditions?
The inductor provides 8.5uH inductance with ±20% tolerance measured at 10KHz/0.1V, ensuring stable performance in high-current PFC applications.
What core material is used and what are its advantages?
The JHST25007 uses Sendust CS184060-HF core material with MPP/Hi-Flux characteristics, providing extremely low core loss and excellent thermal stability for high-efficiency operation.
What is the current rating and construction type?
This inductor features a 100A current rating with flat wire construction, providing superior current handling capability and thermal performance in high-power applications.
Can you provide custom specifications for specific high-current applications?
Yes, we offer comprehensive customization services for special requirements and performance specifications based on your specific high-current design needs and application requirements.
